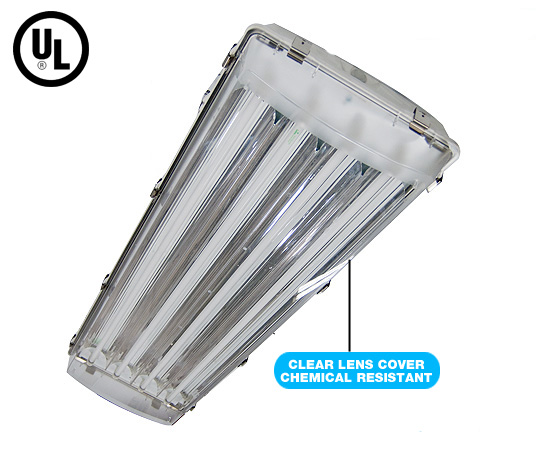

4 LAMP WET LOCATION ENERGY EFFICIENT LIGHT FIXTURE





FIXTURE SPECIFICATIONS:

VOLTAGE: 120VAC ~ 277VAC
AMPERAGE: 0.86 ~ 2 AMPS
DIMENSIONS: 14.60" W x 51.80" L x 5.95" H
CONSTRUCTION: Fiberglass body, St. St. clamps and clear acrylic lens
MOUNTING: 2 Options see below
REFLECTOR: Mirror finish anodized aluminum
LAMPS: 4 x T5 High Output 54 Watts each
LAMP RATING: Rated for 25,000 - 35,000 hours
BALLAST: Part # EB2T5HO 2 Per Fixture
KELVIN: 5000 or Daylight Balanced
LUMENS: 18,000 per fixture


Item Description Price
TSF4 4 LAMPS LIGHT FIXTURE (WITH ST. ST. HANGING MOUNT FOR CEILING MOUNT) $275.00
TSF4S 4 LAMPS LIGHT FIXTURE (WITH SWIVEL MOUNT MOUNT FOR A WALL MOUNT) $299.00
  ---REPLACEMENT PARTS----
T5L REPLACEMENT LAMP H.O. 54 WATT $5.00
EB2T5HO REPLACEMENT ELECTRONIC BALLAST 120~277VAC $29.00
__________________________________________________________________________________

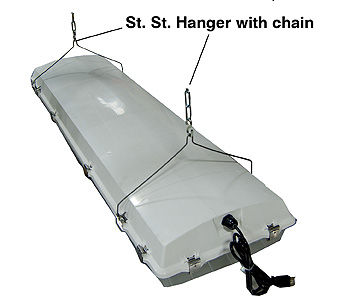

MOUNTING (St. St. Hanging mount) : St. St., Hanging is the default BEST OPTION: If fixture is to be hung from the ceiling. Chains included.

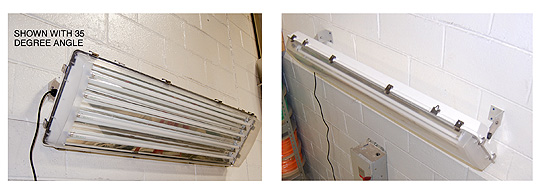

MOUNTING (swivel wall mount) : Price of unit with this mounting $299.00 part # TSF54. BEST OPTION for wall mount.

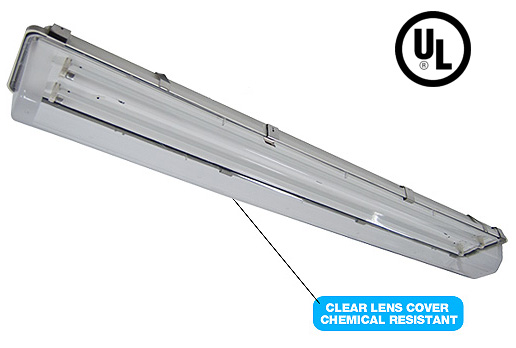

2 LAMP WET LOCATION ENERGY EFFICIENT LIGHT FIXTURE





FIXTURE SPECIFICATIONS:

VOLTAGE: 120VAC ~ 277VAC
AMPERAGE: 0.43 ~ 1 AMP
DIMENSIONS: 7.33" W x 51.30" L x 4.13" H

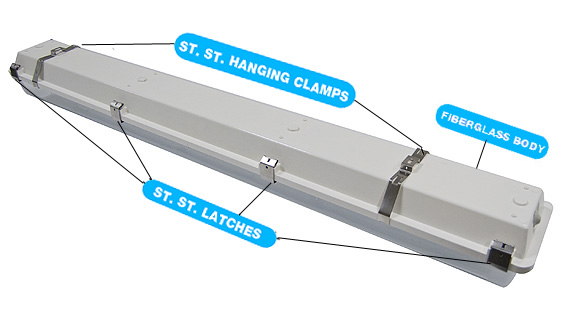

CONSTRUCTION: Fiberglass body, St. St. clamps and clear acrylic lens
MOUNTING: St. St. Clip on Clamps
REFLECTOR: Enhanced White
LAMPS: 2 x T5 High Output 54 Watts each
LAMP RATING: Rated for 25,000 - 35,000 hours
BALLAST: Part # EB2T5HO 1 Per Fixture
KELVIN: 5000 or Daylight Balanced
LUMENS: 9,000 per fixture



Item Description Price
TSF2 2 LAMPS LIGHT FIXTURE (WITH ST. ST. CLIP ON CLAMPS) $145.00
  ---REPLACEMENT PARTS----
T5L REPLACEMENT LAMP H.O. 54 WATT $5.00
EB2T5HO REPLACEMENT ELECTRONIC BALLAST 120~277VAC $29.00

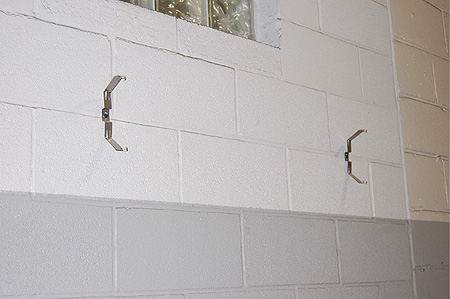

For wall or ceiling mount. Anchor St. St. clamps first then clip fixture in place.

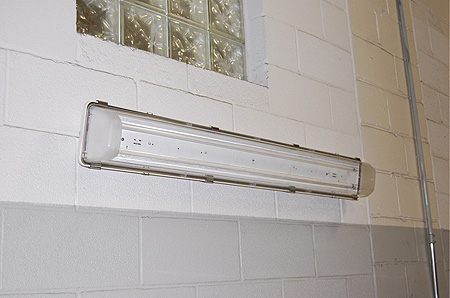

Fixture cliped in to mounting clamps.

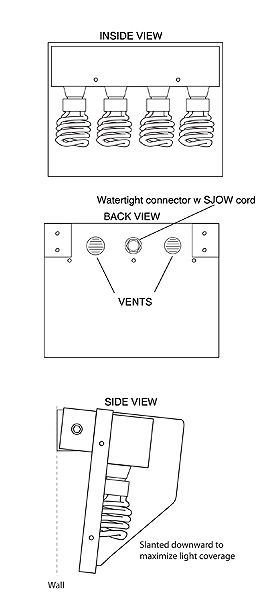

INDOOR/OUTDOOR WALL PACK LIGHTING




SPECIFICATIONS:

• This is an excellent alternative for Metal Halide and High Pressure Sodium wall packs, MH and HPS require expensive bulbs, transformers and generate a lot of heat. We built this fixture utilizing four 23W daylight spiral fluorescent bulbs that have a combined lumens output of 7400. This generates hardly any heat and no power supply is needed. Bulb replacement is available in any hardware store at $2.00 to $4.00 and are rated for 8,000 to 10,000 hours. We vacuum formed the lenses from high impact acrylic. This lens will not yellow in direct sun.

•Dimensions: 13” W x 10” H x 5” D.

•Construction: Baked enamel aluminum body and St. St. hardware with a high impact frosted acrylic face.

•Light Source: Four 23 Watt Spiral fluorescent bulbs.

•Voltage/Amperage: 120VAC / 1 AMP MAX.

Item Description Price
WPL Indoor/ Outdor Wall Pack $125.00

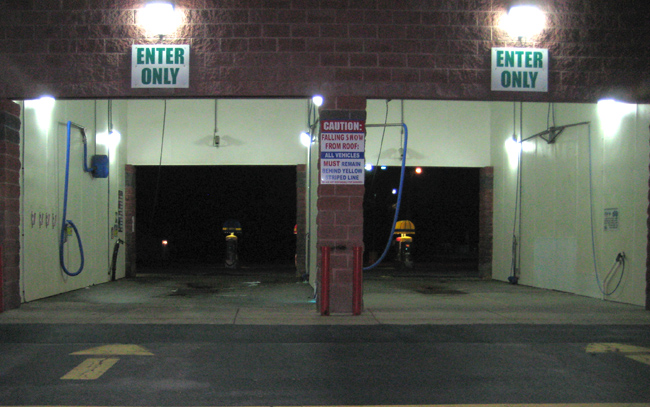

SOME IMAGES OF OUR WALL PACK INSTALLED ON THE EXTERIOR AND INTERIOR

Testimonials:
I would like to tell you that since I installed 50 of your wall packs in and around our car wash and other outer buildings our electric bill has been reduced by almost two thirds as well as the crisp and clear brightness that we now have.

Paul Kasofsky   Super Suds Car and Truck Wash
