E-Z INSTALL LED FLEX LITE BUILDING BORDER

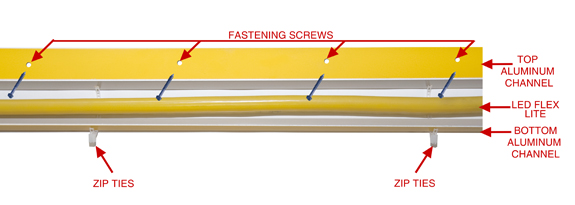

• It is the most economical LED building border in the market and very easy to install, just anchor the channel to a building and bring power to one end.

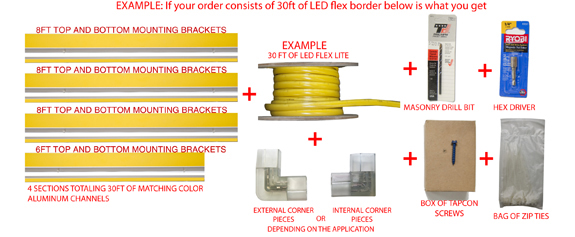

• The price per ft includes LED flex lite (uncut in linear ft), tapcon screws, masonry drill bits, zip ties, corner pieces (as needed) and top and bottom aluminum channels. We custom cut the aluminum channels for the size you need (they will be in multiplications of 8ft long see sample on next page).

• LED Flex lite comes in 150ft rolls, they have to be cut to size at certain marked cut points. The cut points vary depending on the color and voltage, the charts below show where the cut marks are.

• Voltage / Amperage: 120VAC or 24VDC.


PART # DESCRIPTION PRICE
LEDFLEX120 120VAC -- SPECIFY COLOR
INCLUDES ALUMINUM CHANNELS, FASTENING SCREWS, ZIP TIES AND DRILL BITS		 $19.00 FT
LEDFLEX24

24VDC -- SPECIFY COLOR
INCLUDES ALUMINUM CHANNELS, FASTENING SCREWS, ZIP TIES AND DRILL BITS

THIS 24VDC NEEDS TO BE CONVERTED TO 120VAC WITH ONE OF THE POWER SUPPLIES BELOW

 $19.00 FT
24VDCP60 POWER SUPPLY FOR 24VDC - 60 WATTS
ENOUGH TO RUN 30FT OF ANY COLOR		 $65.00
24VDCP90 POWER SUPPLY FOR 24VDC - 90 WATTS
ENOUGH TO RUN 45FT OF ANY COLOR		 $85.00



VOLTAGE:120VAC
CUTTING MARKS
EVERY 2.5 FT
EVERY 1.5 FT
LED COLOR
RED, YELLOW, AMBER
BLUE, GREEN


VOLTAGE:24VDC
CUTTING MARKS
EVERY 1/3 FT
EVERY 1/4 FT
LED COLOR
RED, YELLOW, AMBER
BLUE, GREEN
