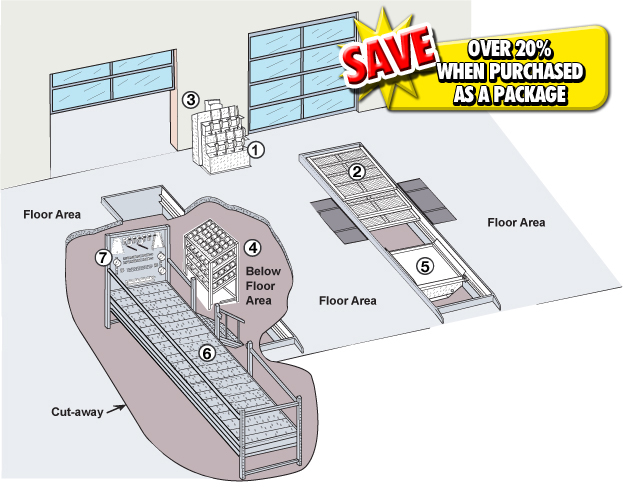

TURNKEY QUICK LUBE 2 BAY PACKAGE (rollover numbers and click to see more info on each item)

safety oildispensing compstand oilfilter toolboard catwalk oilpan

This package includes everything you need for a quick lube 2 bay setup.

PART # DESCRIPTION PRICE
2BAYPACKAGE QUICK LUBE 2 BAY PACKAGE
UP TO 20' PIT LENGTH OPENING
$9,995.00 (SAVINGS OF $3,515.00)


OIL DISPENSING STATION

ONE UNIT INCLUDED IN THE PACKAGE

This unit is intended to be placed in front of the computer station.

• Construction: Heavy diamond aluminum and HDPE durable plastic.

• Dimensions: 30" W X 36" H X 18"D. (Other sizes and openings are available)


Eight openings to accomodate different types of dispiensed oils and fluids.

Each unit comes with floor pattern to cut floor accordingly.

Built in hose gliding wheels to increase hose life by making it easier to pull and replace hoses.

Hoses and oil nozzles are not included




COMES IN MULTIPLES OF 3FT LONG PIECES



SAFETY PIT COVERS

ENOUGH TO COVER 2 PIT OPENINGS OF 20' IN LENGTH AND UP TO 40" WIDE INCLUDED IN PACKAGE

• Dimensions: Comes in multiples of 36inch and width varies

• Construction: Aluminum structure , St. St. hardware and HDPE durable side plastic glide strips

Light weight cover that slides easily for stacking when car is being serviced

CLICK HERE FOR ORDERING SCHEMATIC




COMPUTER PAY STATION

ONE UNIT INCLUDED IN THE PACKAGE

• Construction: Heavy diamond aluminum.

• Dimensions: 30" W X 48" H X 24"D. (Other sizes are available)

Built in electric strip with surge protection helps reduce wire clutter.

Adjustable in height shelves, and there is room in the back where printer paper can feed from the bottom through the back.

Designated sliding keyboard shelve.




OIL DISPENSING STATION

TWO UNITS INCLUDED IN THE PACKAGE

A heavy duty oil filter dispensing unit

• Dimensions: 48.5" W X 84" H (back) 70"H (front) X 31"D.

• Construction: All aluminum frame and zinc plated heavy wire shelves.

Four shelves for oil filter dispensing, and one for case filter storage. Can hold up to 600 filters per unit.

Filters not included




WASTE OIL DRAIN PAN

TWO UNITS INCLUDED IN THE PACKAGE

• Dimensions: 30" L X 14" H 26" W. Tip of the left wheel to the right wheel is 29" expandable to 42"

• Construction: Heavy diamond aluminum body and aluminum screen

Has tool holders for most common tools

1" threaded drain opening on each side

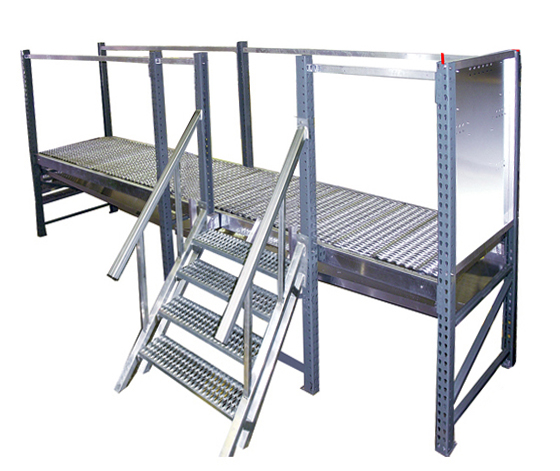

CAT WALKS WITH SIDE OR END STAIRWAY

TWO CAT WALK ASSEMBLIES WITH STAIRS ARE INCLUDED IN THE PACKAGE

This catwalk system can be customized to fit any quick lube requirements.

• Construction: Aluminum, galvanized steel and painted steel

Modular components for easy shipping and installation

Deck is adjustable in 2" height intervals




TOOLS ARE NOT INCLUDED



TOOL MASTER

TWO TOOL BOARDS INCLUDED IN THE PACKAGE

The most flexible and practical tool board in the oil change industry. It was created by technicians with years of pit experience.

• Dimensions: 33" W X 44" H.

• Construction: All aluminum.

Holds up to 75 versatile oil change tools and is easily accessible with snap on locking features.

Built in six drain plug and gasket bins. Also has four strips of socket holders for 1/2" and 3/8" drive sockets.


Custom sizes are available. Call for pricing
